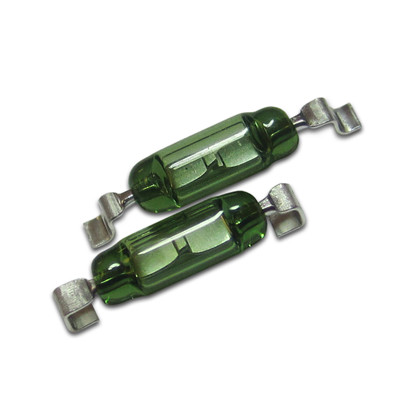

RI-80SMD
開關特點：超小型貼片SMD
觸點形式：常開(A)
玻璃管直徑*長度：1.8*5mm
開關參數：5W/175V/0.5A
最小包裝數量：2000pcs/盒
原產地：荷蘭
觸點形式：常開(A)
玻璃管直徑*長度：1.8*5mm
開關參數：5W/175V/0.5A
最小包裝數量：2000pcs/盒
原產地：荷蘭
一、尺寸 (DIMENSIONS)
二、技術參數 (Technical Parameters)
| 品牌 / 特點 Brand / Feature | COTO |
小型貼片 |
| 觸點方式 Contact Form | Form A | |
| 動作值 Operate Range | AT | 5-15** |
| 釋放值 Release Range | AT | 2-13** |
| 最大開關功率 Switching Power - max. | W / VA | 5 |
| 最大開關電壓 Switching Voltage - max. | V (DC / AC) | 175 / 140 |
| 最小擊穿電壓 Breakdown Voltag - min. | V | 230 |
| 最大開關電流 Swtiching Current - max. | mA (DC / AC) | 350 / 250 |
| 最大載流電流 Carry Current - max. | A (DC) | 0.5 |
| 最大接觸電阻 Contact Resistance - max. | mOhms |
160 |
| 響應頻率 Resonant Frequency | Hz | 21300 |
| 工作溫度范圍 Operating Temperature | oC | -55 ~125 |
** AT值可根據客戶要求訂制。請向當?shù)劁N售代表咨詢。
** Customer specific AT ranges and modifications are possible. Please contact our local sales.
三、訂購信息 (Order Information)
RI-80SMD - XXXX - YY
- RI-80SMD: 產品系列號 Series
- XXXX: AT值范圍 AT Ranges
- YY: 引腳形狀 Lead configuration
G1 for Gull Wing version 1
G2 for Gull Wing version 2
J for J-Lead version
